COMPONENTS

SYSTEMS FOR LIVING
PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
---|---|---|---|---|

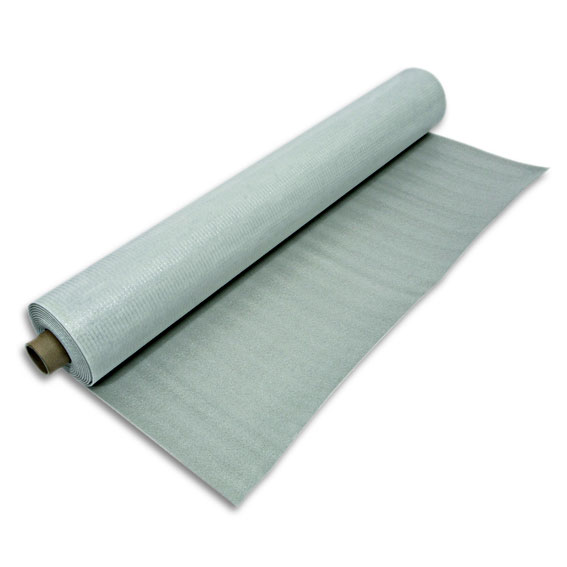

![]() | ACOUSTIC MAT tear-resistant heat and impact sound insulating mat with low built-up height of only 4 mm, impact sound improvement of up to 18 dB, lambda = approx. 0,038 W/ (m·K), (width = 1000 mm, thickness = 4 mm) | TSM | 10 m² / coil | |

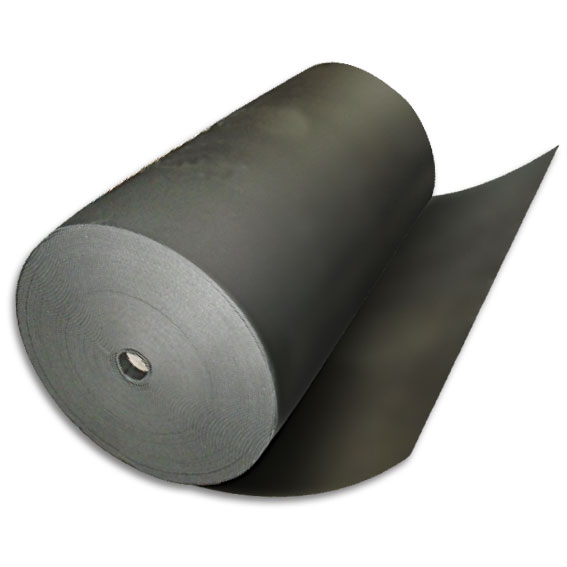

![]() | ACOUSTIC MAT SUPER heat and impact sound insulating mat with a thickness of 5 mm, permanently elastic and pressure-resistant, can be double fitted (pay attention to traffic loads!), impact sound improvement when single fitted of up to 20 dB, when double fitted of up to 22 dB, lambda = approx. 0,041 W/ (m·K), (width = 1500 mm, thickness = 5 mm) | TSMS | 15 m² / coil | |

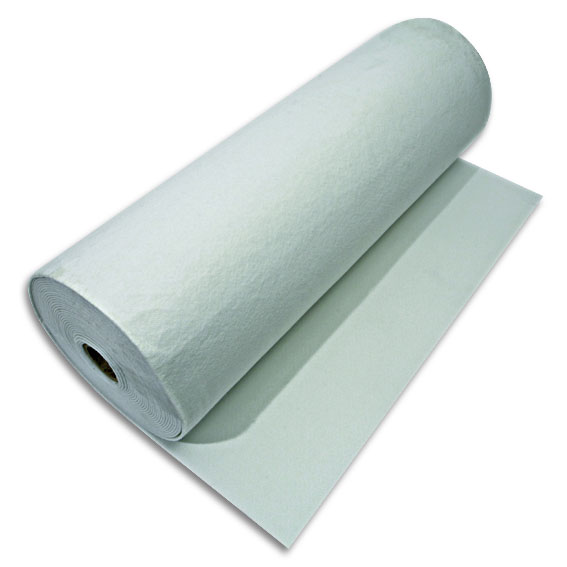

![]() | ACOUSTIC FLEECE sound reducing, thin insulation layer, especially suited for retrofit, when only low floor building heights are possible, impact sound improvement of up to 21 dB, lambda = approx. 0,040 W/ (m·K), (width = 1250 mm, thickness = 4 mm) | TSV | 35 m² / coil |
PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
---|---|---|---|---|

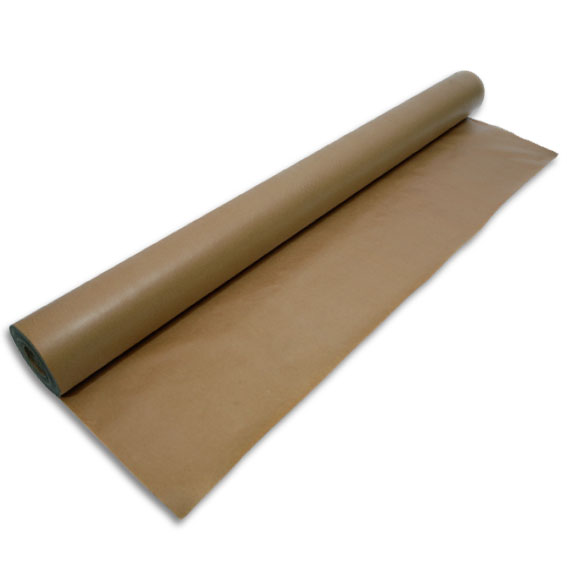

![]() | HUMIDITY PROTECTION film-coated paper for covering of insuation material or as separation layer acc. to DIN 18560, suited for hot air welding, consumption approx. 1,15 m² / m² of floor (overlapping and border areas), width of coil 1,30 m | SL | 130 m² / coil |
PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
---|---|---|---|---|

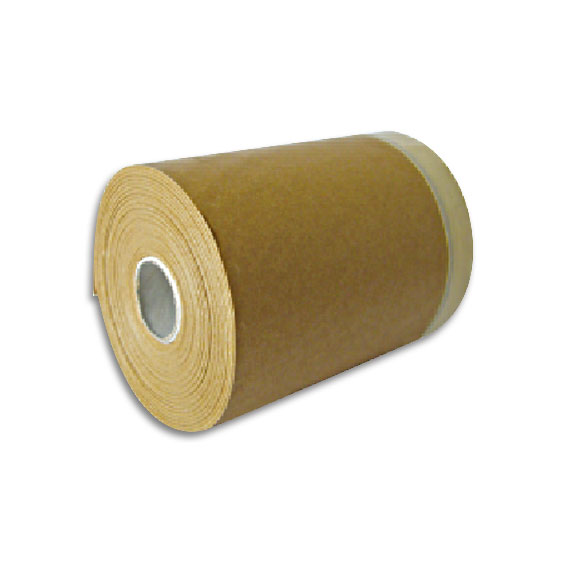

![]() | PAPER ADHESIVE TAPE width = 90 mm, unfoldable to 180 mm | KB | 25 m / coil | |

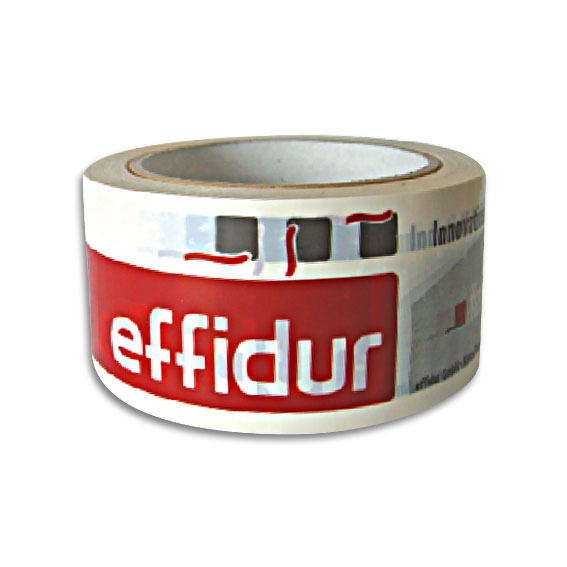

![]() | SYNTHETIC ADHESIVE TAPE width = 50 mm, white printed with effidur logo | KBK | 65 m / coil |
PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
---|---|---|---|---|

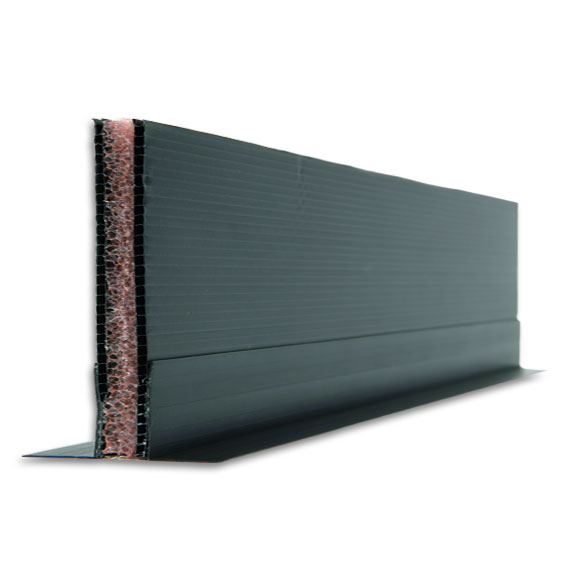

![]() | PROFESSIONAL JOINT solid joint profile with self-adhesive base for forming expansion joints, especially between heated and unheated areas, (height = 80 mm, thickness = 10 mm, width = 50 mm, length = 1200 mm) | PF | 1 piece | |

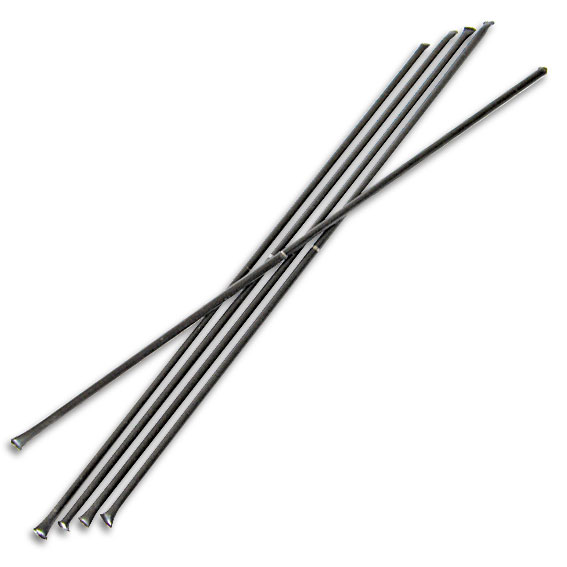

![]() | JOINT DOWEL two-sided flexible joint dowel to avoid staggering in height and to minimise dishing effects in joint areas, consumption per m of professional joint: 3 - 4 pieces, (length = 300 mm, thickness = 4 mm) | FD | 5 pieces | |

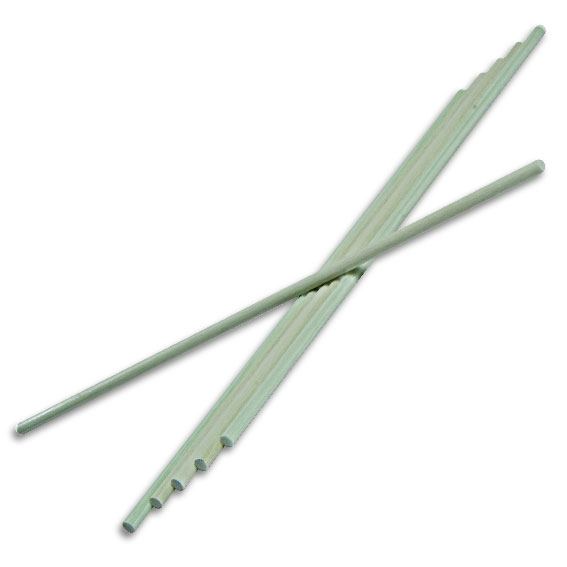

![]() | JOINT DOWEL WITH SOUND PROTECTION two-sided flexible joint dowel to avoid staggering in height and to minimise dishing effects in joint areas, use when sound protection is required,consumption per m of professional joint: 3 - 4 pieces, (length = 300 mm, thickness = 6 mm) | FDS | 5 pieces |
PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
---|---|---|---|---|

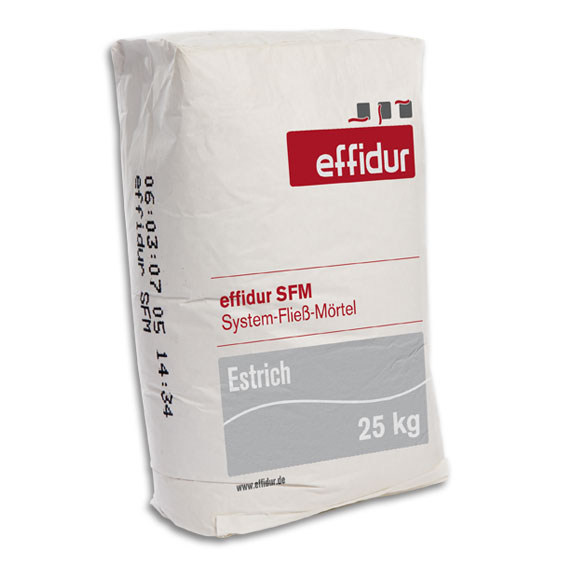

![]() | SYSTEM SCREED high-quality conrete-sulphate screed, nearly self-levelling, quality class CT/CA-C30/F8 acc. to DIN EN 13813 for backfilling of comb panels, consumption approx. 13,2 l / bag, with WP 2000 / 25 mm system height approx. 0,52 m², with WP 1000 / 15 mm system height approx. 0,88 m² | SFM | 25 kg / bag | |
![]() | SYSTEM SCREED SILO description identical to SFM, but delivered in a silo | SFM SILO | ordering unit = tonne (t) delivery of SFM SILO upon demand |
The information given on our products / onto this product page, in particular illustrations, descriptions, dimensions, weights and other parameters, is not binding. This is because technical progress means that our products are continually being developed and perfected. The user of our products is obliged to self-dependently verify and adhere to current technical guidelines, laws and provisions, even if they are not mentioned within our documentation. The general terms and conditions of business of effidur GmbH apply.
