| PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
|---|---|---|---|---|
 | COMB PANEL 900 comb panel made of zinc-plated steel sheet, system height 9 mm, open, 1192 x 556 mm, 0,5 m²/ panel | WP 900 | 5 m² / package | |

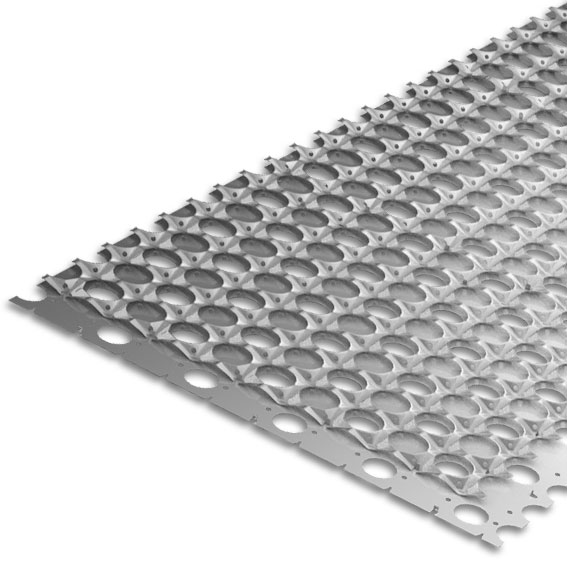

 | COMB PANEL 1000 comb panel made of zinc-plated steel sheet, system height 10 mm, open, 1192 x 556 mm, 0,5 m²/ panel | WP 1000 | 5 m² / package | |

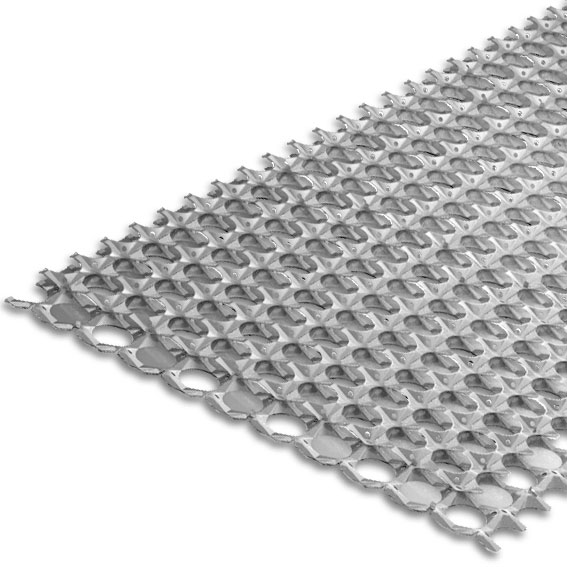

 | COMB PANEL 2000 comb panel made of zinc-plated steel sheet, system height 20 mm, open, 1192 x 556 mm, 0,5 m²/ panel | WP 2000 | 5 m² / package | |
 | BORDER INSULATION TAPE 1000 for WP 900 and WP 1000, length = 1000 mm, height = 50 mm, with hold for brackets made of | RDS 1000 | 1 m | |

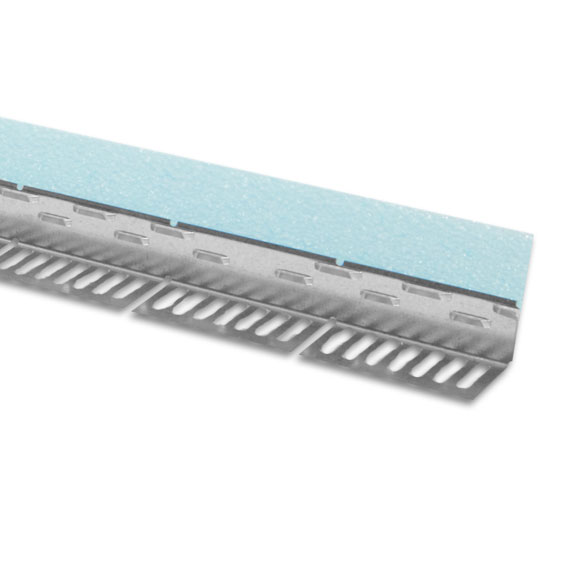

 | BORDER INSULATION TAPE 2000 for WP 2000, | RDS 2000 | 1 m | |

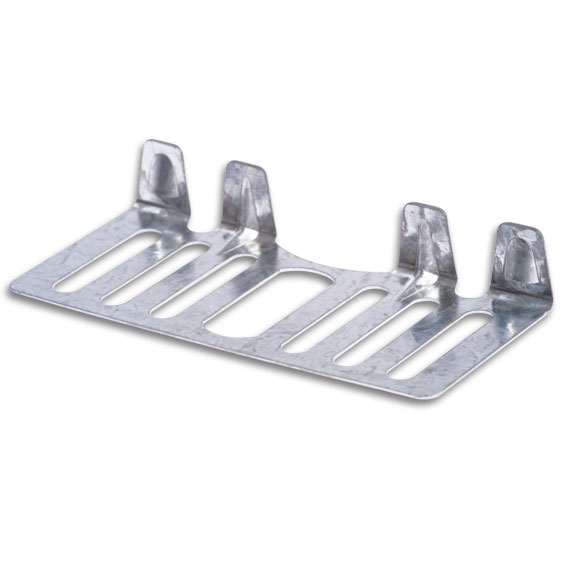

 | BRACKET zinc-plated steel sheet, length = 85 mm, for fixing of the comb panels to the border insulation tape, consumption approx. 3 pieces / m | HK | 10 pieces 50 pieces 500 pieces | |
| PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
|---|---|---|---|---|
 | HEATING PIPE ø 8 mm 5-layer-compound pipe ø 8 x 1,1 mm (coil length 40 m), oxygen impermeable acc. to DIN 4726 , max. temperature 95 °C, nominal pressure 6 bar, testing pressure 10 bar, consumption approx. 8,5 m per m² of floor, max. length of heating loop 35 m = approx. 4 m² | HR 040-8 | 40 m / coil | |

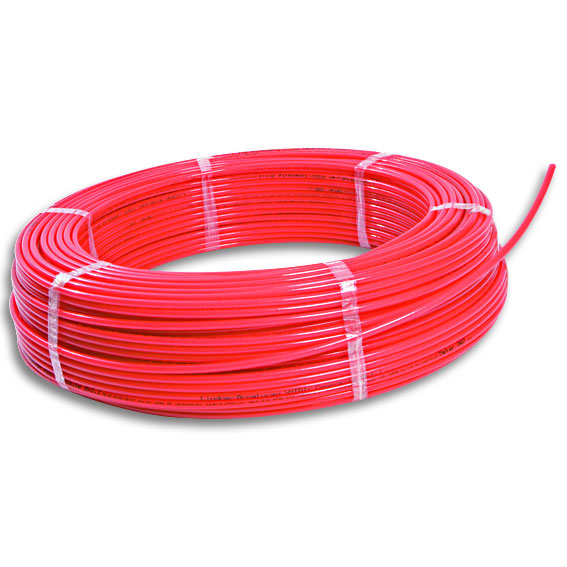

 | HEATING PIPE ø 8 mm description analogue to HR 040-8, but coil length 200 m | HR 200-8 | 200 m / coil | |

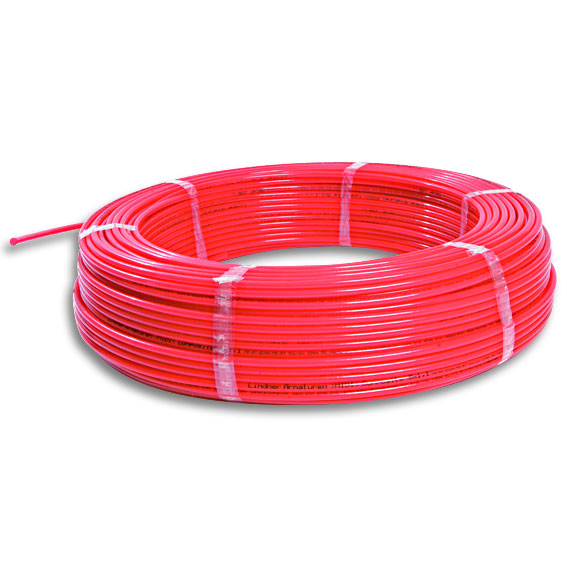

 | HEATING PIPE ø 8 mm description analogue to HR 040-8, but coil length 600 m | HR 600-8 | 600 m / coil | |
| PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
|---|---|---|---|---|

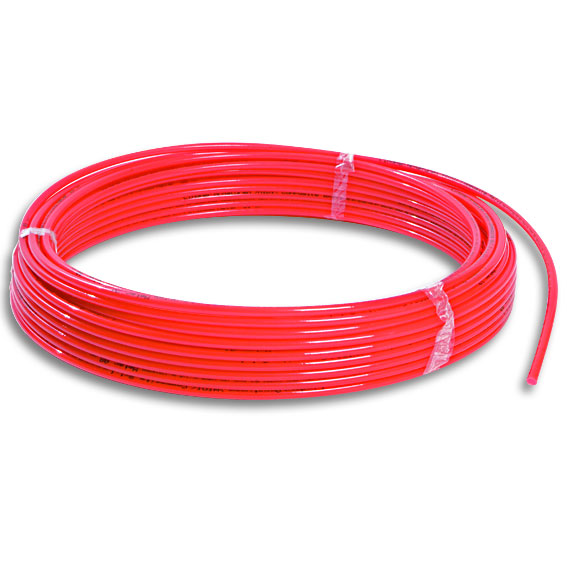

 | HEATING PIPE ø 10 mm 5-layer-compound pipe ø 10 x 1,3 mm (coil length 75 m), oxygen impermeable acc. to DIN 4726, max. temperature 95 °C, nominal pressure 6 bar, testing pressure 10 bar, consumption approx. 8,5 m per m² of floor, max. length of heating loop 70 m = approx. 8 m² | HR 075-10 | 75 m / coil | |
 | HEATING PIPE ø 10 mm description analogue to HR 075-10, but coil length 150 m | HR 150-10 | 150 m / coil | |
 | HEATING PIPE ø 10 mm description analogue to HR 075-10, but coil length 300 m | HR 300-10 | 300 m / coil | |

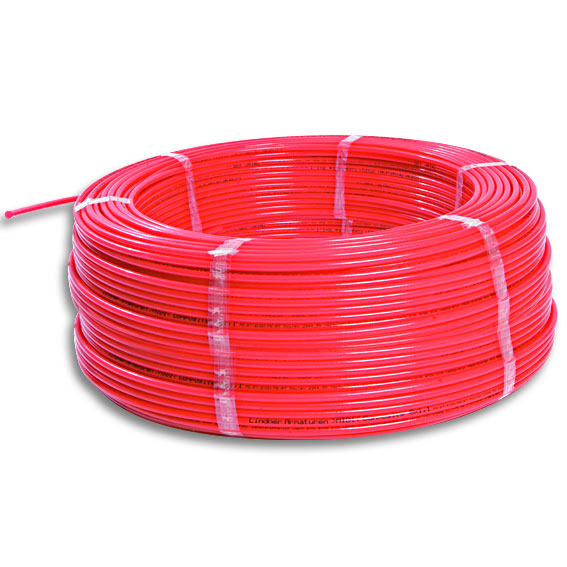

 | HEATING PIPE ø 10 mm description analogue to HR 075-10, but coil length 600 m | HR 600-10 | 600 m / coil | |
| PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
|---|---|---|---|---|

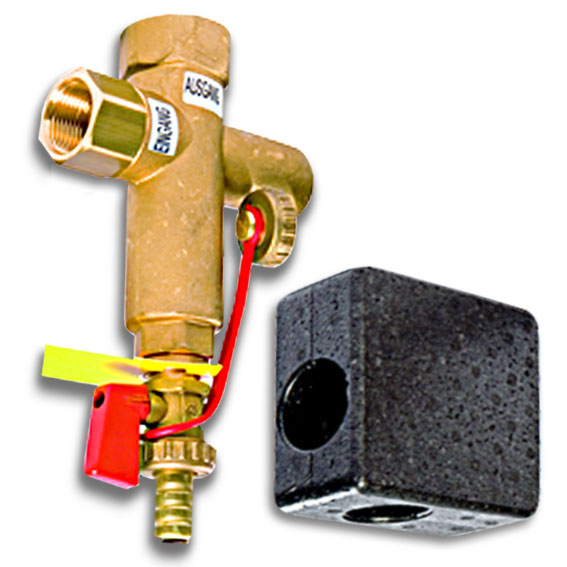

 | FLOW FILTER for heating facilities with a performance of up to 28 kW | SF | 1 piece | |

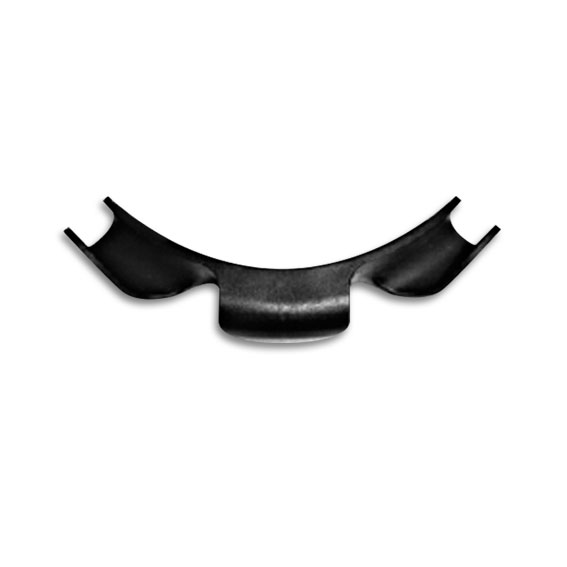

 | BEND FOR PIPE GUIDING for protecting the heating pipe | RFB 8 | 2 pieces | |

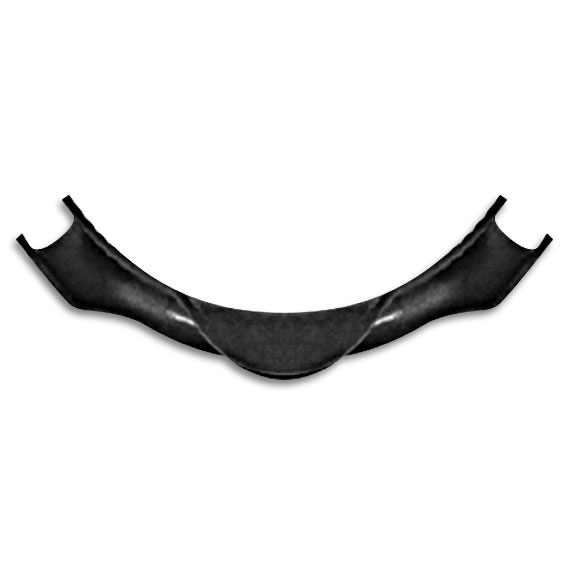

 | BEND FOR PIPE GUIDING for protecting the heating pipe | RFB 12 | 2 pieces | |
| PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
|---|---|---|---|---|
 | PROTECTION PIPE corrugated pipe, length = 200 mm, for the mechanical protection of the heating pipe wherever the pipe comes out of the floor system and in areas of lead-through (e.g. professional joints) | SR 200-8 | 2 pieces | |

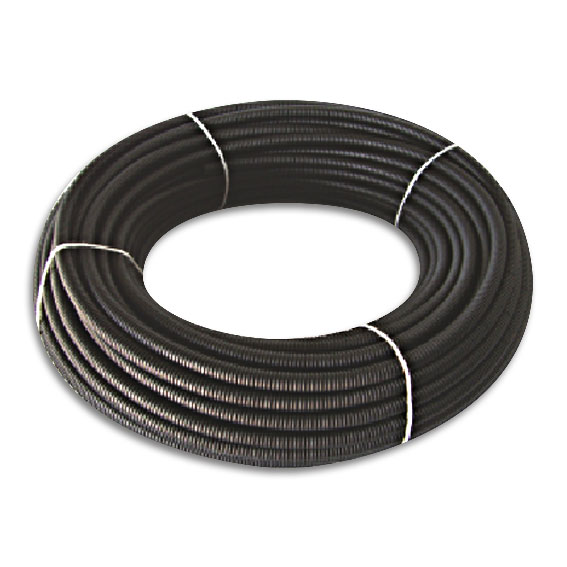

 | PROTECTION PIPE description analogue to SR 200-8, but customized coil length | SR 8 | ordering unit = meter (m) | |

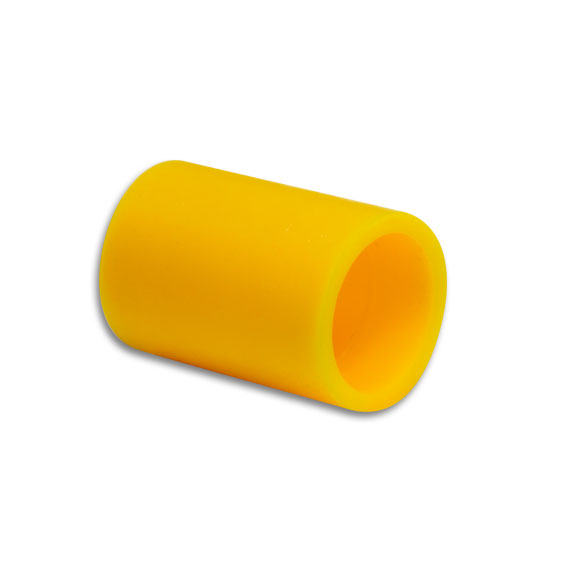

 | PIPE PROTECTION CAP for closing of pipe ends until finishing of the fitting and as protection against contaminations | SK 8 | 2 pieces | |
| PICTURE | DESCRIPTION | ORDER CODE | QUANTITY/ PACKAGING UNIT | MEMO |
|---|---|---|---|---|

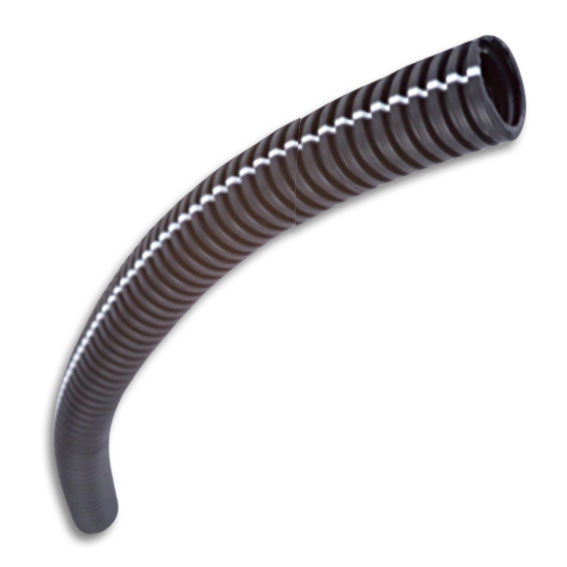

 | PROTECTION PIPE corrugated pipe, length = 300 mm, for the mechanical protection of the heating pipe wherever the pipe comes out of the floor system and in areas of lead-through (e.g. professional joints) | SR 300-10 | 2 pieces | |
 | PIPE PROTECTION CAP description analogue to SR 300-10, but customized coil length | SR 10 | 2 Stück | |
 | PIPE PROTECTION CAP for closing of pipe ends until finishing of the fitting and as protection against contaminations | SK 10 | 2 Stück | |
