PLUG CONNECTOR
for heating pipe ø 8 mm

single plug connector ø 8 mm - 1/2" male thread (incl. 1x supporting sleeve) for areas of up to 4 m²

PLUG CONNECTOR
for heating pipe ø 8 mm

single plug connector ø 8 mm - 1/2" female thread (incl. 1x supporting sleeve) for areas of up to 4 m²

PLUG CONNECTORPLUG CONNECTOR
for heating pipe ø 10 mm

single plug connector ø 10 mm - 1/2" female thread (incl. 1x supporting sleeve) for areas of up to 8 m²

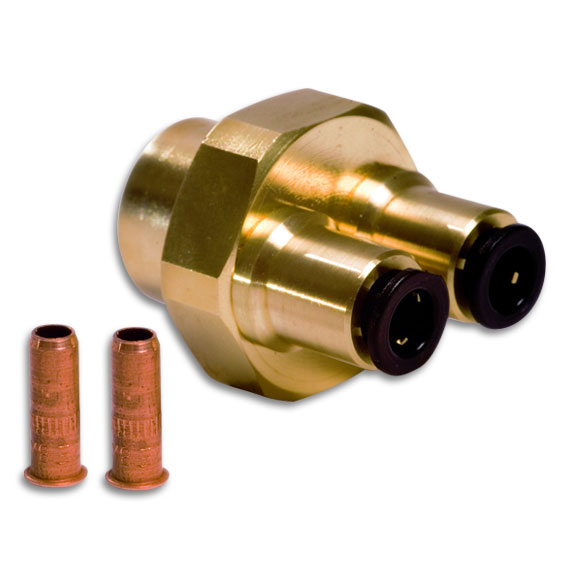

SUB-MANIFOLD 2-port

for heating pipe ø 8 mm with 2x plug connector ø 8 mm - 1/2" female thread (incl. 2x supporting sleeve) for areas of up to 8 m²

SUB-MANIFOLD 3-port

for heating pipe ø 8 mm with 3x plug connector ø 8 mm - 1/2" female thread (incl. 3x supporting sleeve) for areas of up to 12 m²

SUB-MANIFOLD 4-port

for heating pipe ø 8 mm with 4x plug connector ø 8 mm - 1/2" female thread (incl. 4x supporting sleeve) for areas of up to 16 m²

SUB-MANIFOLD 2-port

for heating pipe ø 10 mm with 2x plug connector ø 10 mm - 1/2" female thread (incl. 2x supporting sleeve) for areas of up to 16 m²

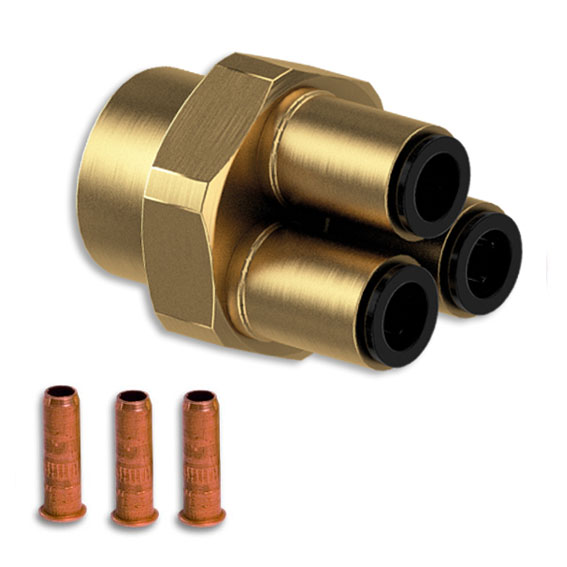

SUB-MANIFOLD 3-port

for heating pipe ø 10 mm with 3x plug connector ø 10 mm - 1/2" female thread (incl. 3x supporting sleeve) for areas of up to 20 m²

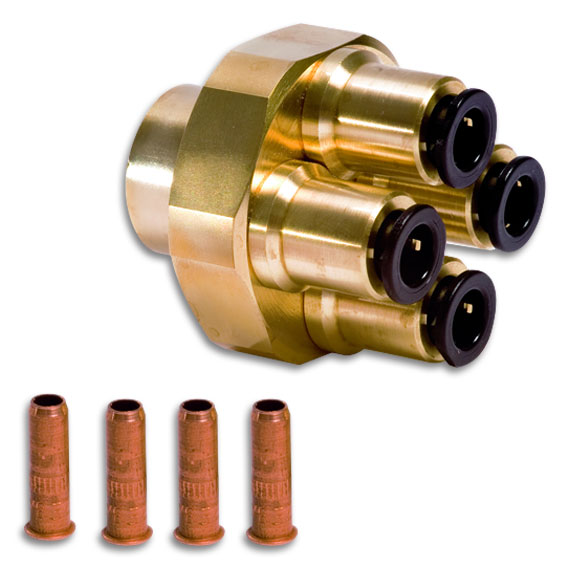

SUB-MANIFOLD 4-port

for heating pipe ø 10 mm with 4x plug connector ø 10 mm - 1/2" female thread (incl. 4x supporting sleeve) for areas of up to 24 m²

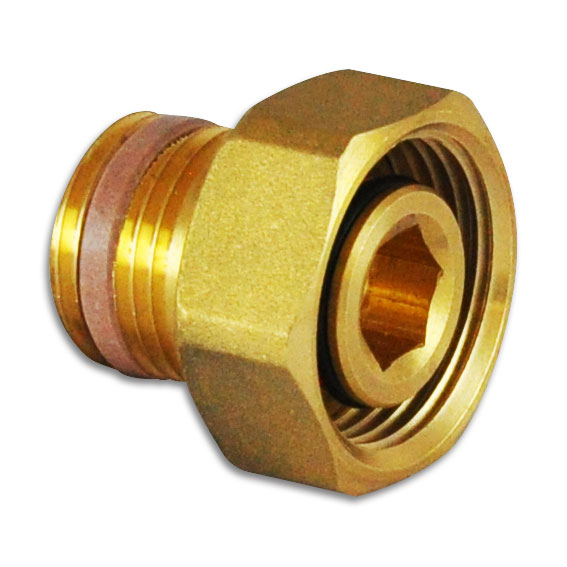

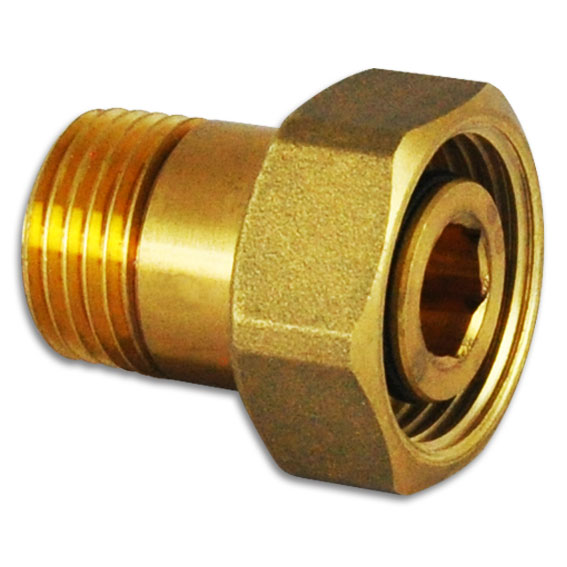

SCREW CONNECTION

screw connection 3/4" for the connection of sub-manifolds resp. single plug connectors to conventional manifolds and valves, consisting of union nut G 3/4" euro cone with o-ring sealing and sleeve R 1/2"

SCREW CONNECTION SELF-SEALING

screw connection 3/4" for the connection of sub-manifolds resp. single plug connectors to conventional manifolds and valves with self-sealing sleeve R 1/2" through PTFE? threaded sealing ring. consisting of union nut G 3/4" euro cone with o-ring sealing and sleeve R 1/2"

BLIND PLUG

sealing plug ø 8 mm, for the sealing of non-used manifold ports

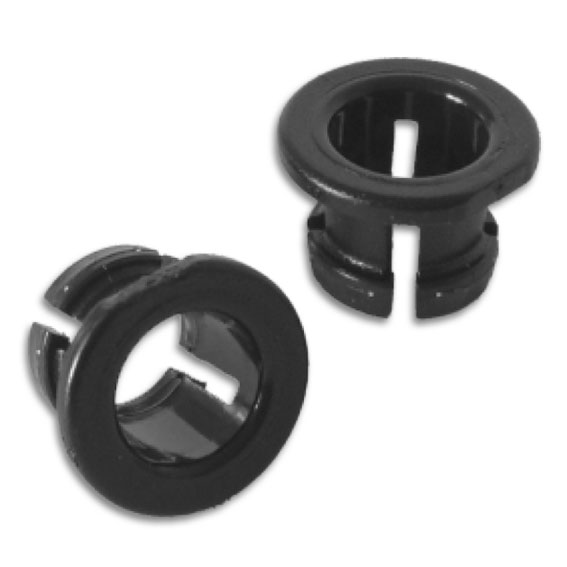

COLLET

8 mm collet, spare part for all plug connectors ø 8 mm

SUPPORTING SLEEVE

supporting sleeve for pipe ø 8 x 1,1 mm, for calibrating and reinforcement of pipe ends, is included in original effidur manifold equipment, only order as spare part

BLIND PLUG

sealing plug ø 10 mm, for sealing of non-used manifold ports

COLLET

10 mm collet, spare part for all plug connectors ø 10 mm

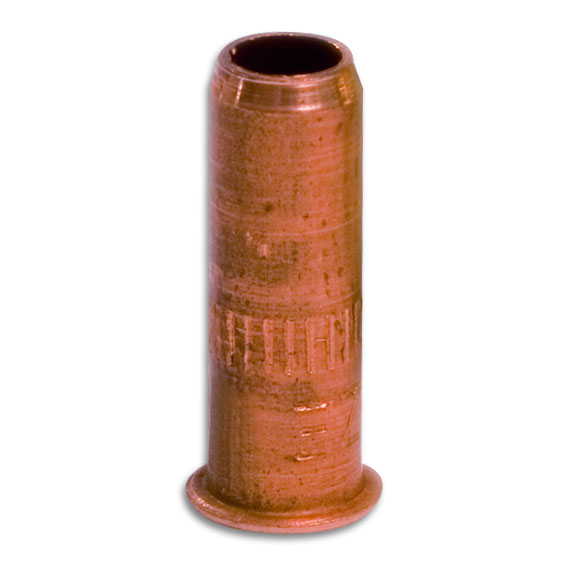

SUPPORTING SLEEVE

supporting sleeve for pipe ø 10 x 1,3 mm, for calibrating and reinforcement of pipe ends, is included in original effidur manifold equipment, only order as spare part
