| effidur GmbH | COMB PANEL WP 900 |

AREA AND POINT LOADS IN PRACTICE

application field (example)			work load kN/m²	point load kN

A1	attic	non-suited for residential purposes, but accessible attic with clear height of up to 1.80 m	1,0	1,0
A2	lounge areas	rooms with sufficient lateral distribution of loads, rooms and hallways in residential buildings bed rooms in hospitals, hotel rooms incl. kitchen and bath rooms	1,5	-
A3	lounge areas	as A2, but without sufficient lateral distribution of loads	2,0	1,0

B1	offices, working areas, hallways	hallways in office buildings, offices, medical practice, waiting rooms, lounges incl. hallways, barns for small domestic animals	2,0	2,0
B2		hallways in hospitals, hotels, home for the elderly, boarding schools etc. kitchens, medical treatment rooms incl. operating rooms without heavy devices	3,0	3,0
B3		as B2, but with heavy devices	5,0	4,0

C1	rooms, meeting rooms and areas suited for meetings (except for categories A, B, D and E)	areas with tables e.g. class rooms, cafés, restaurants, dining halls, reading halls, entrance halls	3,0	4,0
C2		areas with firm seating, e.g. areas in churches, theatres or cinemas, convention halls, auditorium, waiting rooms	4,0	4,0
C3		freely accessible areas, e.g. museum areas, exhibition areas etc. entrance areas of public buildings and hotels, impassable yard cellar ceilings	5,0	4,0
C4		sports and play areas, e.g. dancing halls, sports halls, gymnastics and power sports areas, stages	5,0	7,0
C5		areas for large gatherings, e.g. in buildings as concert halls, terraces, entrance halls as well as tribunes with firm seating	5,0	4,0

D1	sales rooms	sales rooms up to 50 m² net area within residential or office buildings or similar	2,0	2,0
D2		areas in retail and department stores	5,0	4,0
D3		as D2, but with increased point loads due to high storage racks	5,0	7,0

excerpt from survey report of MPA Stuttgart, on the basis of DIN 1055 part 3, edition 2002

The matching especially with the according current edition of DIN EN 1991-1-1 and DIN EN 1991-1-1/NA is necessary!

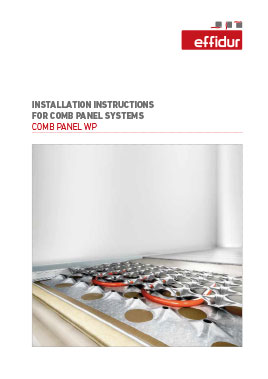

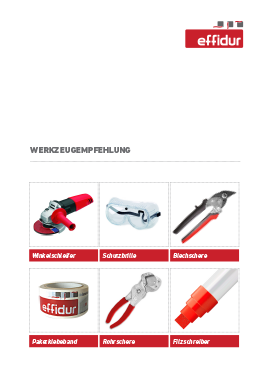

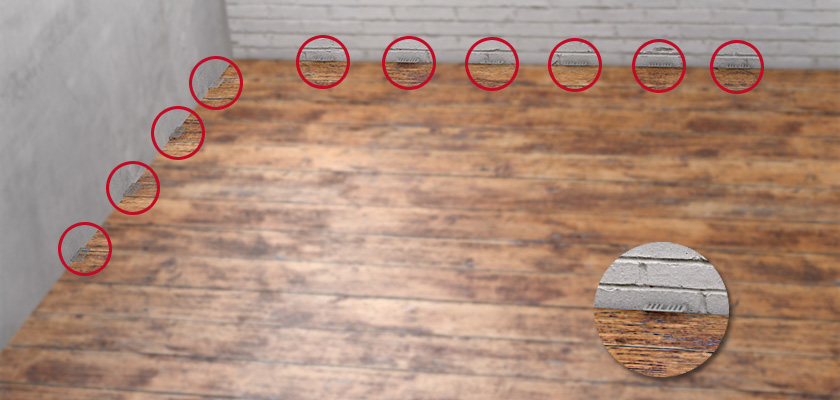

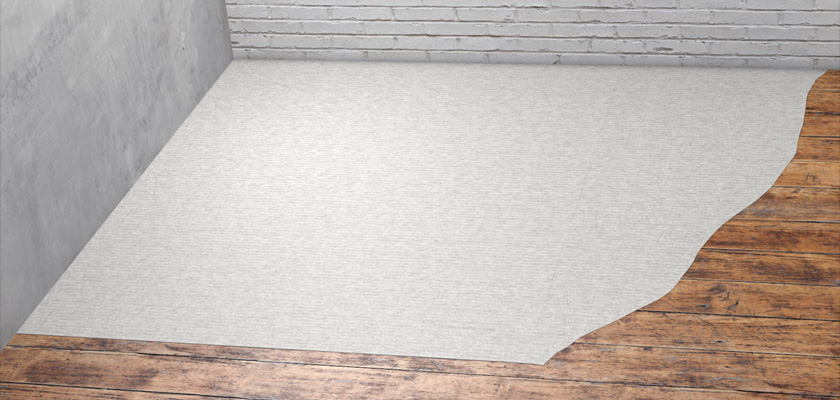

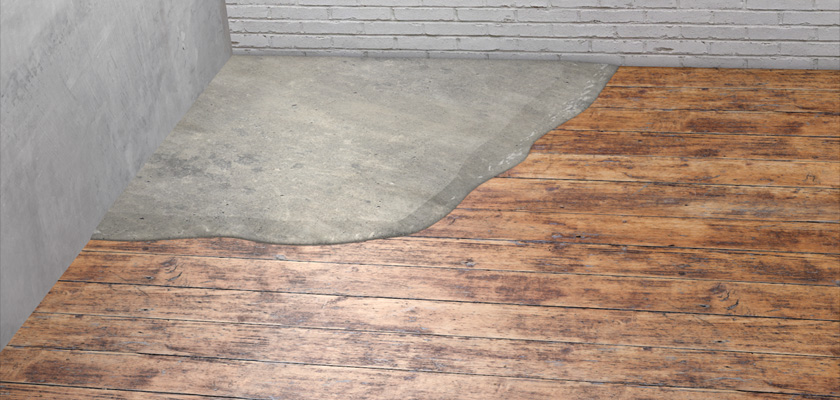

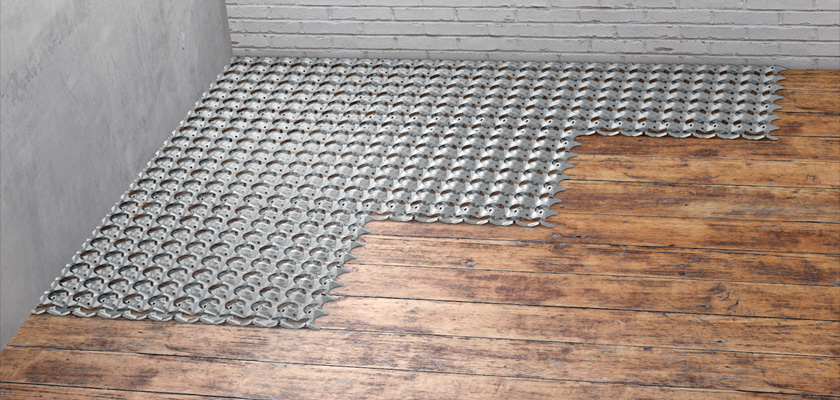

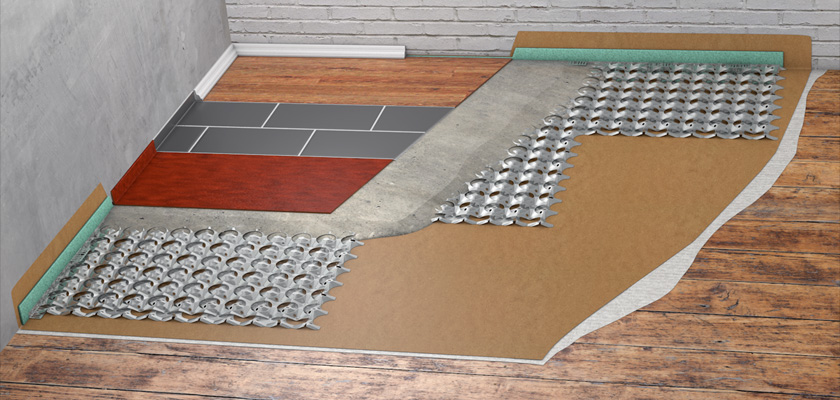

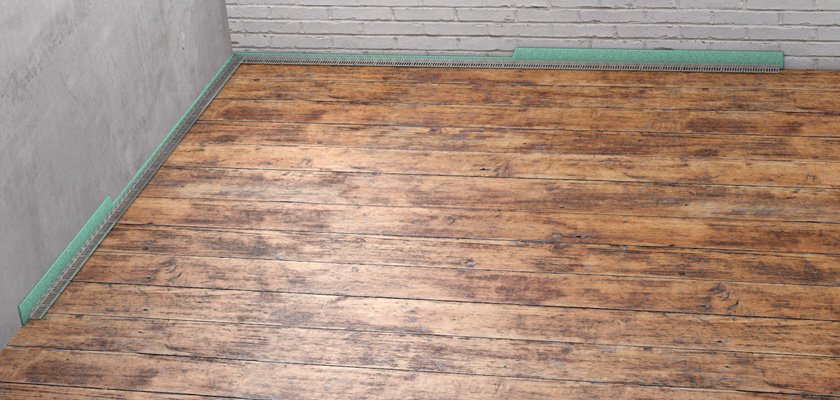

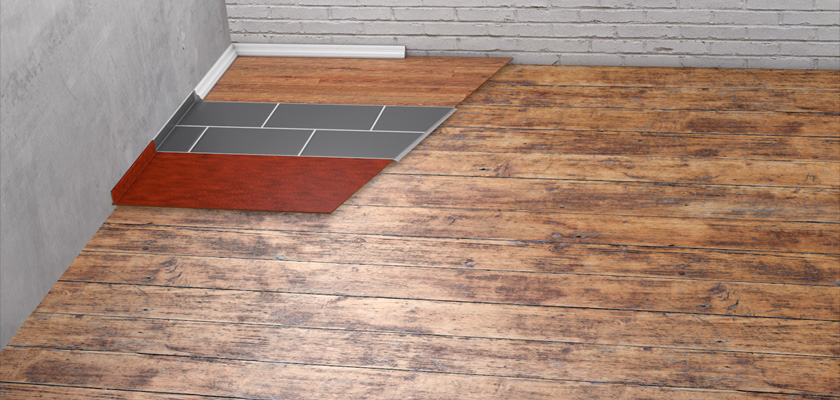

INSTALLATION INSTRUCTIONS
